Product Overview

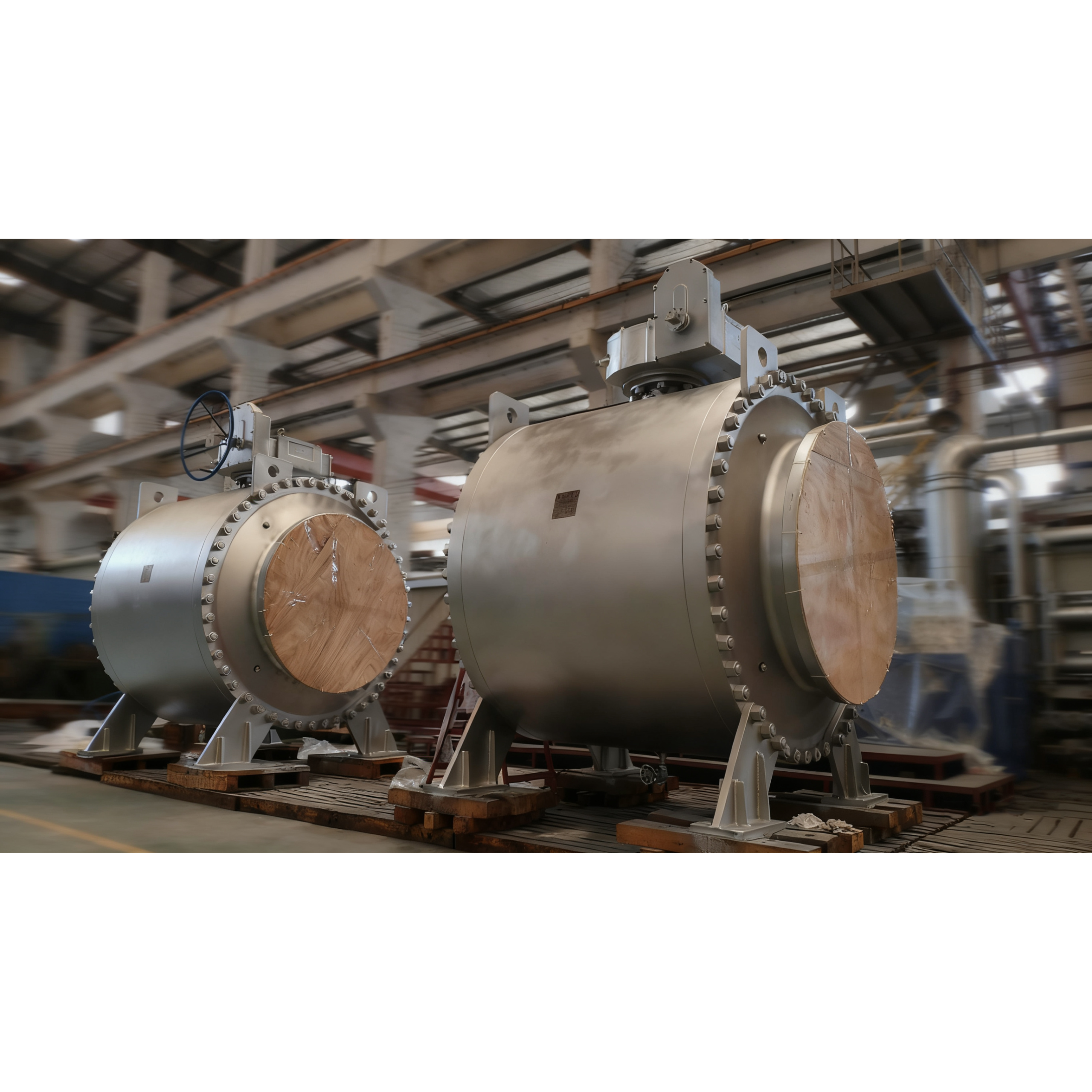

JEV Large Bore Trunnion Mounted Ball Valves are designed for project-based oil & gas pipeline, process plant, marine, offshore and industrial applications where large size, high pressure class, reliable shut-off performance and robust mechanical strength are required.
With trunnion mounted ball support and project-specific seat design, these valves are suitable for demanding operating conditions involving high pressure service, long-distance pipeline transmission, special materials, low temperature service, sour service and actuator-integrated valve packages.
Key Features
- Large bore trunnion mounted design for pipeline and project applications
- Designed and manufactured according to API 6D / ASME B16.34 requirements
- Suitable for large size, high pressure and critical shut-off service
- Available in full bore or reduced bore configuration
- Soft seated and metal seated designs available according to service conditions
- DBB, DIB-1 / DIB-2, SPE / DPE seat design options available
- Available for sour service / NACE, low temperature, cryogenic, high temperature and special alloy applications
- Gear, pneumatic, electric or hydraulic actuator packages available according to project requirements
Technical Range
| Product Type | Large Bore Trunnion Mounted Ball Valve |
| Design Standards | API 6D, ASME B16.34, ISO 14313 |
| Size Range | 6"–60" typical project range; larger sizes subject to project requirements |
| Pressure Class | Class 150–2500 |
| Body Design | Side Entry / Top Entry, 2-piece / 3-piece design according to project requirements |
| Bore | Full Bore / Reduced Bore |
| End Connections | RF, RTJ, BW, WN Flanged Ends according to project specification |
| Valve Materials | WCB, WCC, LCB, LCC, LF2, CF8, CF8M, CF3M, F51 / F53, C5, C12, Inconel 625 / 825, Monel, Hastelloy and other project-specified materials |
| Seat Design | SPE, DPE, DBB, DIB-1, DIB-2, soft seated or metal seated design |
| Seat Materials | PTFE, RPTFE, Nylon, Devlon, Derlin, PEEK, Metal Seat |
| Operation | Gear, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator |
Applications
- Oil & gas transmission pipeline systems
- Large size pipeline shut-off service
- Petrochemical and chemical process plants
- Power, marine and offshore engineering projects
- High pressure, low temperature and sour service applications
- Actuated valve packages for project-based supply
Quality & Testing
JEV provides in-process and final inspection according to project requirements. Available testing and documentation may include hydrostatic shell test, seat leakage test, low pressure gas test, high pressure gas test, PMI, NDE, fire-safe test documentation, fugitive emission test documentation, coating reports, actuator function test and final documentation packages.
RFQ Information
For quotation, please provide valve size, pressure class, end connection, body material, trim material, bore type, seat design, seat material, operation method, actuator requirement, applicable standard, service condition and any project-specific testing or documentation requirements.
