Product Overview

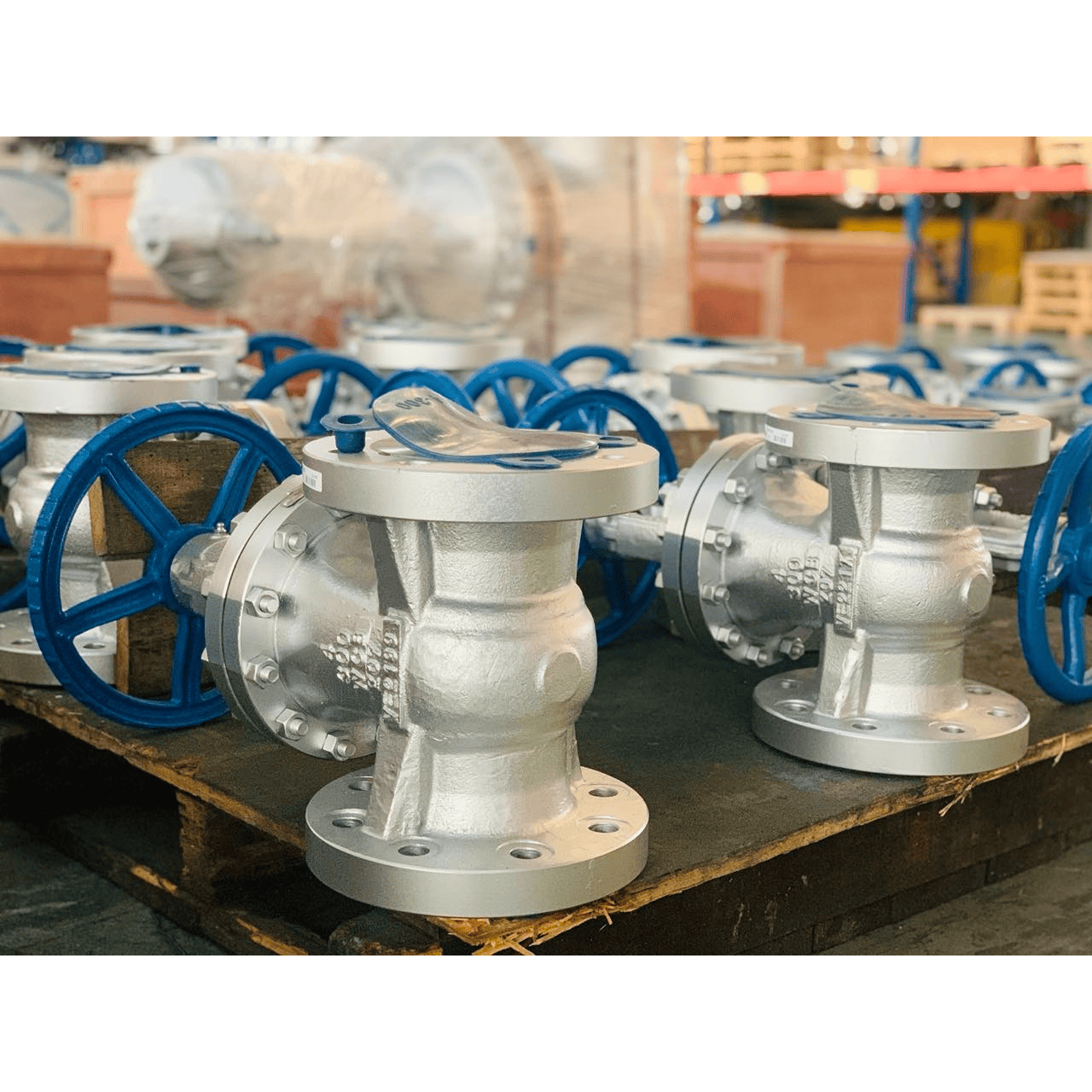

JEV API 623 Globe Valves for Project Supply are designed for shut-off, throttling and flow regulation service in oil & gas, petrochemical, power, marine, offshore and industrial process applications. This product range is suitable for project-based procurement where multiple sizes, pressure classes, materials, trim configurations, testing requirements and documentation packages need to be supplied under one coordinated valve package.
With integrated manufacturing capability and project execution support, JEV provides globe valve solutions covering body material selection, trim configuration, disc design, seat hard facing, end connections, pressure class, packing arrangement, coating system, inspection requirements and final documentation control.
Key Features
- Designed and manufactured according to API 623 / ASME B16.34 requirements
- Suitable for shut-off, throttling and flow regulation service
- Project-based supply covering multiple sizes, pressure classes and materials
- Bolted bonnet, outside screw and yoke construction
- Plug disc, flat disc, needle disc or project-specified disc design available
- Renewable seat ring and hard-faced sealing surface options available
- Available for sour service / NACE, low temperature, high temperature, alloy steel and special alloy applications
- Batch supply with material traceability, inspection records and final documentation packages
- Handwheel, gear, pneumatic actuator and electric actuator operation available
Technical Range
| Product Type | API 623 Globe Valves for Project Supply |
| Design Standards | API 623, ASME B16.34, BS 1873 when applicable |
| Size Range | 2"–24", subject to project requirements |
| Pressure Class | Class 150–2500 |
| Body / Bonnet Design | Bolted Bonnet, OS&Y, Rising Stem |
| Disc Design | Plug Disc / Flat Disc / Needle Disc / Project-Specified Disc Design |
| Flow Pattern | Straight Pattern / Angle Pattern / Y-Type when applicable |
| End Connections | RF, RTJ, BW |
| Valve Materials | WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3M, F51 / F53, Inconel 625 / 825, Monel, Hastelloy and other project-specified materials |
| Trim Options | 13Cr, F6a, 410, 304, 316, 316L, STL hard facing, Inconel overlay and other project-specified trim materials |
| Operation | Handwheel, Gear, Pneumatic Actuator, Electric Actuator |
Applications
- Oil & gas process systems
- Petrochemical and chemical process units
- Power generation steam, water and auxiliary systems
- Marine, offshore and industrial process applications
- Flow regulation, throttling and isolation service
- High temperature, low temperature and sour service conditions
- Project-based valve packages requiring coordinated delivery and documentation
Project Supply Capability
JEV supports project-based globe valve supply with coordinated production planning, material traceability, inspection control, painting and coating requirements, packing arrangements and final documentation submission. The product range can be configured according to client datasheets, project specifications and international standards.
Quality & Testing
JEV provides in-process and final inspection according to project requirements. Available testing and documentation may include hydrostatic shell test, seat leakage test, backseat test, low pressure gas test, PMI, NDE, material certificates, pressure test reports, coating reports and final documentation packages.
RFQ Information
For quotation, please provide valve size, pressure class, end connection, body material, trim material, disc type, operation method, applicable standard, service condition, quantity, delivery requirement and any project-specific testing or documentation requirements.
